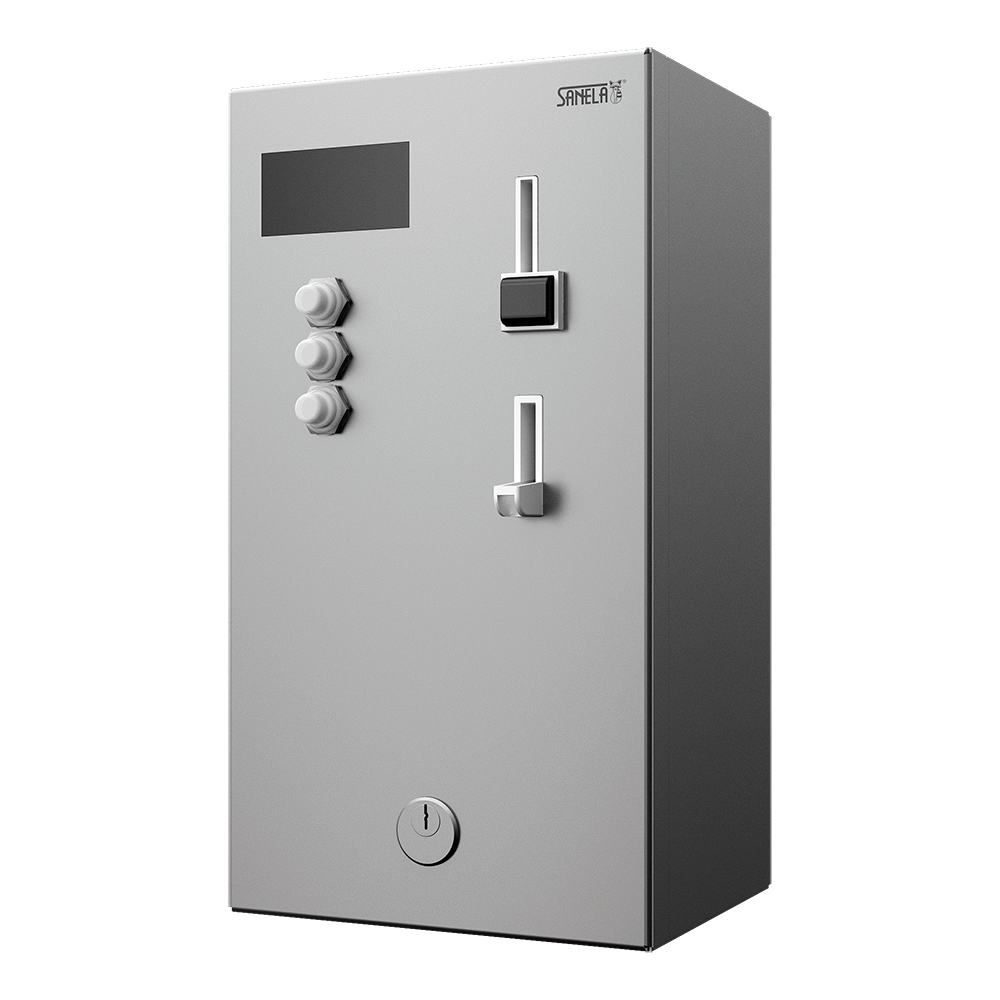

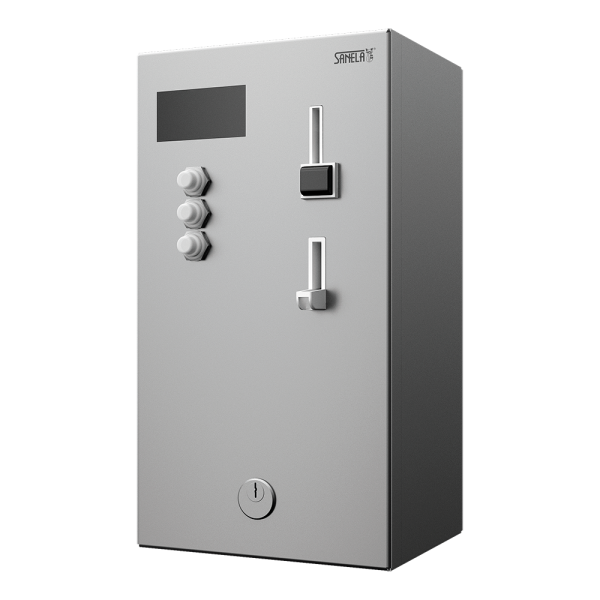

SLZA 02N
Coin and token shower timer for four to twelve showers, 24 V DC, choice of shower by the machine, interactive control
Nous sommes désolés, mais ce produit n'est plus dans notre offre. Veuillez essayer d'en choisir un autre de notre offre
Caractéristiques
- hygienic flush
- vandal-proof
- choice of shower by the machine
- after inserting a coin or a token the machine assigns the shower to the user and shows the number of shower on display
- interactive control
- after inserting a coin or a token the machine starts water flow on several seconds to indicate the chosen shower
- the user can start or stop the water directly in the shower
- 30 s before the end of water supply the user is warned by interrupting of water flow
- parameters adjustment using by the remote control SLD 05 (adjustment of shower time according to the thrown coin or token, time value, current euro exchange, token value, display contrast, possibility switch off some from showers)
- marking of the buttons by symbols could be made to order
- the possibility of obtaining the statistical information, device diagnostics
- lockable
- for indoor use, temperature range +5 to +40 °C
- material AISI - 304
- brushed finish
- Numéro de commande: 88023
Je souhaite obtenir plus d'informations:
Spécification de la fourniture
SLZA 02N - Supply No. 88023 - stainless steel coin machine with electronics, coin holder and coin box, set of keys (2 pcs.)
Informations techniques
| Installation: | fixé au mur |
| Operating voltage: | 24 V DC |
| Accepted coins: | 1 and 2 €, token |
| (OTHER CURRENCIES ON REQUEST) | |
| Switch on delay: | 0 – 255 sec., standard 30 sec. |
| Showering time: | 5 – 1200 sec. |
Téléchargements
- Notice de montage (782.6 kB)
- Notice d’utilisation générale (29.16 kB)
- Fiche catalogue (1004.65 kB)
- Schéma bloc de câblage (2.91 MB)
- Dessin 2D (334.52 kB)
