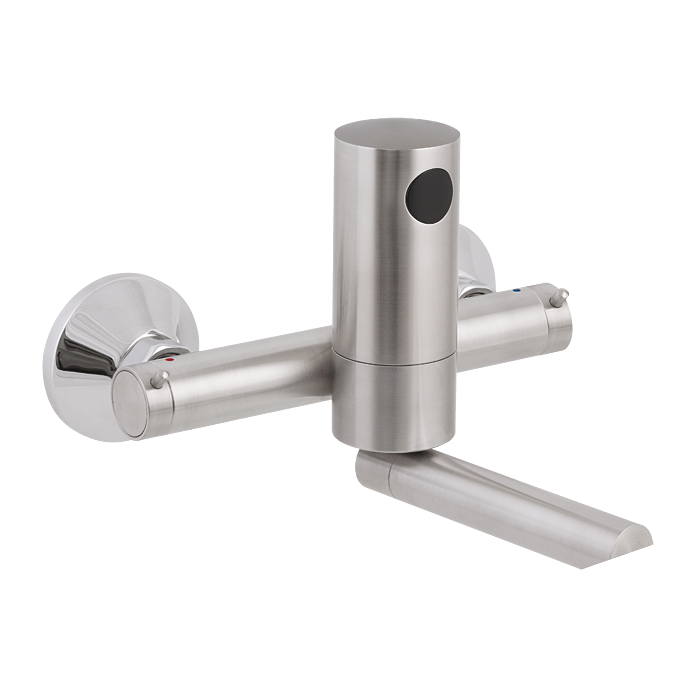

SLU 12BRK
Wall-mounted tap for cold and hot water, water supply span 100 mm, 9V
Nous sommes désolés, mais ce produit n'est plus dans notre offre. Veuillez essayer d'en choisir un autre de notre offre
Caractéristiques
- economical aerator, rate of flow 6 l/min
- function of automatic water stop after 5 minut of continuous flow
- SLU 12BR, BRK is destined for cold and hot water, with stainless steel swivel spout
- water is flowing as long as hands are in the active range (max. range to 0,3 m)
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay
- adjustable time delay from 0,25 to 7,75 sec.
- possibility of changing of time delay, active range and switching off by SLD 03
- monitoring of battery capacity
- START/STOP program
- Numéro de commande: 23127
Je souhaite obtenir plus d'informations:
Spécification de la fourniture
SLU 12BRK - supply No. 23127 - stainless steel washbasin faucet with an integrated battery-operated electronics, mixer and electromagnetic valve (1 pc.), ball valve and brass screw-coupling (2 pcs.); stainless steel spout; cover (2 pcs.); regulating tap connection (2 pcs.); lithium battery SLA 09
Informations techniques
SLU 12BRK: water inlet spacing 100 mm
Operating voltage: 9V
Active range: standard 0 - 1 m, START/STOP program 0,05 - 0,1 m
Recommended flow pressure: 0,05 - 0,8 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2˝
Water outlet: swivel outlet arm
Water temeperature regulation: by mixer (it isn´t a part of delivery)
Length of swivel outlet arm: 140 mm (different lenghts could be made to order)
Operating voltage: 9V
Active range: standard 0 - 1 m, START/STOP program 0,05 - 0,1 m
Recommended flow pressure: 0,05 - 0,8 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2˝
Water outlet: swivel outlet arm
Water temeperature regulation: by mixer (it isn´t a part of delivery)
Length of swivel outlet arm: 140 mm (different lenghts could be made to order)
Téléchargements
- Notice de montage (9.7 MB)
