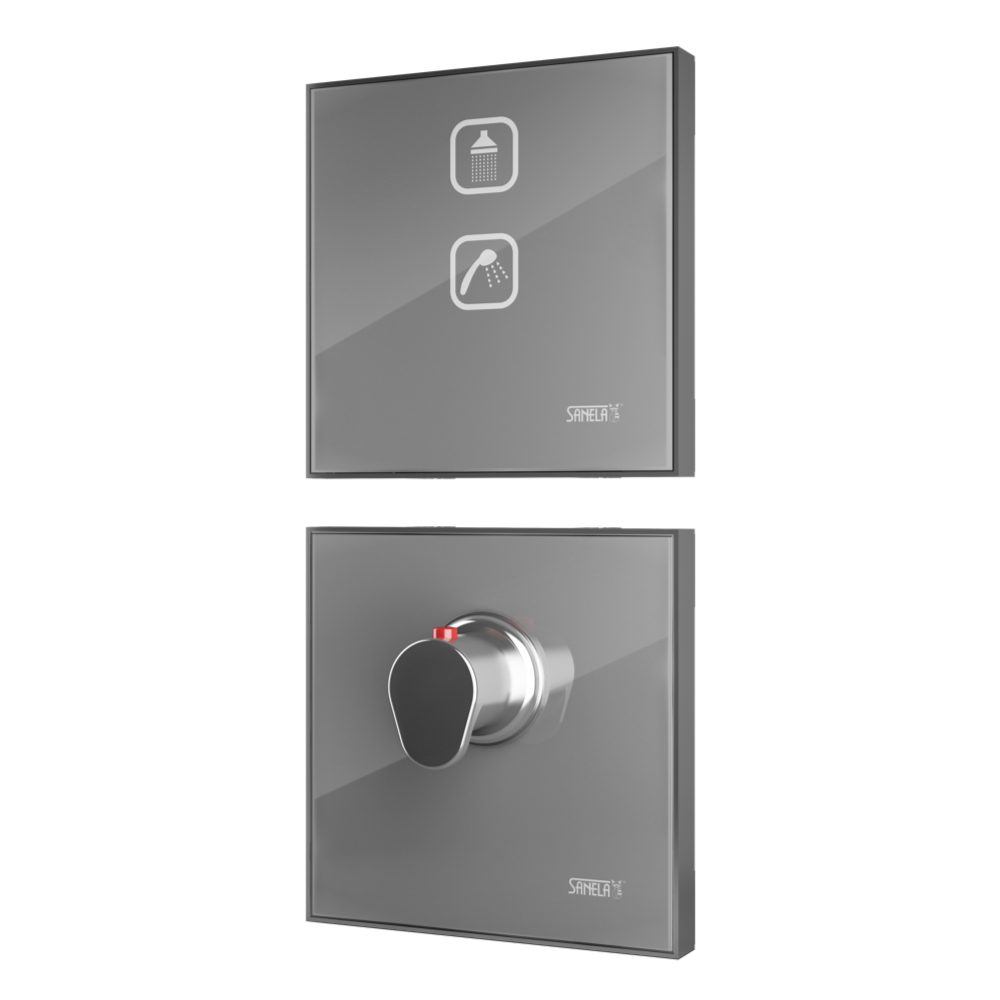

SLS 32B
Electronic Touch Control for Head and Hand Shower with Thermostatic Mixing Valve, colour light grey REF 9006, backlit of the symbol cyan, 24 V DC
Nous sommes désolés, mais ce produit n'est plus dans notre offre. Veuillez essayer d'en choisir un autre de notre offre
Caractéristiques
- hygienic flush
- electronic touch control for head and hand shower with thermostatic mixing valve 1/2“ in glass cover
- water is flowing after the gentle touch of a symbol on a glass cover
- both, the head and hand shower can be used at the same time (if there‘s enough water pressure)
- water stops flowing after adjustable flowing time (can be set in range 10 s - 310 s), standard 300 s
- water could be stopped by follow-up gentle touch of backlit symbol
- stop flowing of hot water in case of cold water failure
- temperature of water is adjusted within the range 15 - 50 °C
- for the right function the pressure of water have to be the same on the both water inlets
- parameters adjustment using by the remote control SLD 06
- adjust the colour and intensity of the backlight using the SLD 10 remote control
- Numéro de commande: 02320
- EAN: 8591385023200
Je souhaite obtenir plus d'informations:
Spécification de la fourniture
SLS 32B - Supply No. 02320 - glass cover in stainless steel mounting frame with electronics (colour light grey REF 9006, backlit of the symbol cyan) (2 pcs.), stainelss steel mounting box with ball valve and electromagnetic valve, stainless steel mounting box with thermostatic valve, check valves, connecting part, waterproofing foil
Informations techniques
| Matériau: | verre |
| Régulation de la température: | avec thermostat |
| Alimentation: | 24V CC |
| Contrôle: | tactile électronique |
| Glass cover dimension | 170 x 170 mm |
| Mounting box dimension | 200 x 200 x 87 mm |
| Operating voltage | 24 V DC |
| Recommended flow pressure | 0,1 - 0,6 MPa |
| Rate of flow | 20 l/min. (inf. data) |
| Water inlet | male thread G 3/4“ |
| Water outlet | male thread G 3/4“ |
Téléchargements
- Notice de montage (5.23 MB)
- Fiche catalogue (232.61 kB)
- Dessin 2D (465.79 kB)
