SLP 99 Blagnac 00357000000
Radar flushing unit for urinal Blagnac 00357000000
Caractéristiques

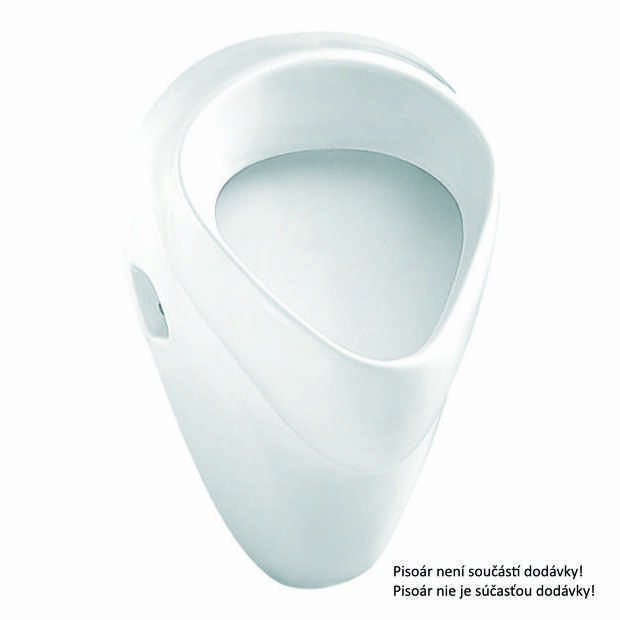

- DESIGNED FOR URINAL BLAGNAC (Allia) 00357000
- includes Bluetooth control (Sanela Control app available for download)
- THE URINAL DOES NOT HAVE TO BE SENT FOR ASSEMBLY (THE RADAR SENSOR IS SUPPLIED SEPARATELY)
- SLP 99R - 24 V DC, the product includes a installation boxm with outlet fitting, it must be embedded in the wall in the space behind the urinal
- SLP 99Z - 230 V AC, including power supply unit
- economy flushing by 1 liter of water
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameter setting and communication with the electronics via the Sanela Control app (Bluetooth) or the SLD 04 remote control (acoustic indication of setting) without dismantling the urinal
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the ball valve
- radar flushing unit recharges a water to the siphon after each flushing
Je souhaite obtenir plus d'informations:
Spécification de la fourniture

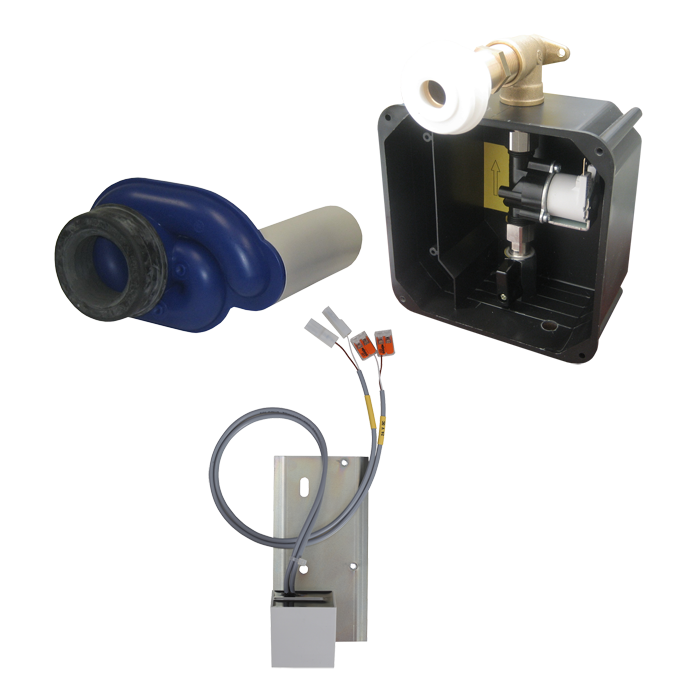

SLP 99R - Supply No. 01994 - radar flushing unit including Bluetooth module on the mounting rail, mounting box with brass screw coupling, rubber sealing and electromagnetic valve, siphon
SLP 99Z - Supply No. 21994 - radar flushing unit including Bluetooth module on the mounting rail, mounting box with brass screw coupling, rubber sealing and electromagnetic valve, siphon, power supply
Informations techniques
| Mounting box dimensions: | 140 x 140 x 75 mm |
| Operating voltage: | SLP 99R - 24 V DC |
| SLP 99Z - 230 V AC/50 Hz | |
| Power input: | operating by 24 V DC - 8 W |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 18 l/min (inf. data) |
| Water inlet: | male thread G 3/4“ |
| Water outlet: | inlet fitting with a rubber sealing |
Téléchargements
- Fiche catalogue (317.89 kB)
- Préparation du chantier (340.24 kB)
Accessoires
